Digital signage for Church led display, Indoor led screen for sound, video&loop system
1.Thin and light design,one person can handle the installation;
2. 500x500mm big panel, speedily and easily mounting, perfect 16:9 colorful image;
3.Ultra thin body, Die-casting aluminum structure, high-accuracy connection, error<0.1mm;
4.Natural aluminum heat conduction design (no-cooling fan),quiet world.
5. Application in concert, exhibition, wedding, conference, meeting, annual party, DJ bar and other events.
Technical Parameter
| Item | Parameter |
| Pixel Pitch | 3.91mm-indoor |
| Pixel Configuration | 1R1G1B / R:G:B=3:6:1 |
| LED Lamp | Full color |
| Density | 65536dot/m2 |
| Module Size | 250*250mm |
| Module Pixel | 64*64=4096dot |
| Module Thickness | 15mm |
| Module Weight | 576g |
| Module Power | ≤40W |
| Drive Valtage | DC5V |
| Module Electric Current | 7.64A |
| PortType | HUB-75D/B |
| Standard Caninet Size | 500mm*500mm*75mm |
| Cabinet Weight | 6.2KG |
| Brightness/Adjustment | ≥1200cd/m2, Level 16- Automatic / Level 100-Manual operation |
| View Angle | ≥120°(Vertical),≥120°(Horizontal) |
| Best View Distance | 5-15m |
| Grey Scale | Within 65536 Step |
| Frame Frequency | ≥60Hz |
| Refresh Rate | ≥720Hz |
| Signal Input Source | Composite, S-video, Component, VGA, DVI, HDMI, SDI, HD-SDI |
| Scan Mode | 1/16 Scan |
| Drive IC | MBI5124 |
| Module Qty / M2 | 16 |
| Display Color Qty | 16777216 |
| Continuous Working Time | >24(Hrs) |
| Screen Lifespan | >100,000(Hrs) |
| MTBF | >5000(Hrs) |
| Max. power consumption | 650W/m2 |
| Ave. power consumption | 220W/m2 |
| Out of control pixel rate | ≥3/10,000(discrete distribution) |
| Control Distance | 100M(Ethernet) 500M(Multi-fiber) 10KM(Sigle-fiber) |
| Flatness | Screen Surface≤0.5mm,Pixel Pitch≤0.3mm |
| Operation Temperature | -10℃~+50℃ |
| Working Humidity | 10%~98%RH |
| Storage Temperature | -40℃~+85℃ |
| Software Connection | Standard Computer Connection,Compatiable With Windows,Unix,Novell |
| protection system | Overtemperature/overload/power/image compensation/nonlinear correction |
| Working Valtage | 200~240 V |
| Dielectric Strength | 50HZ/1500V(AC RMS)/1min |
| Temperature Rise | Metal≤40K,Insulation≤65K , After Heat Balance |
| IP Grade | IP43 |
| Computer display mode | 1024*768 |
| Media Player | LED Pressional Media Player
Novastar |

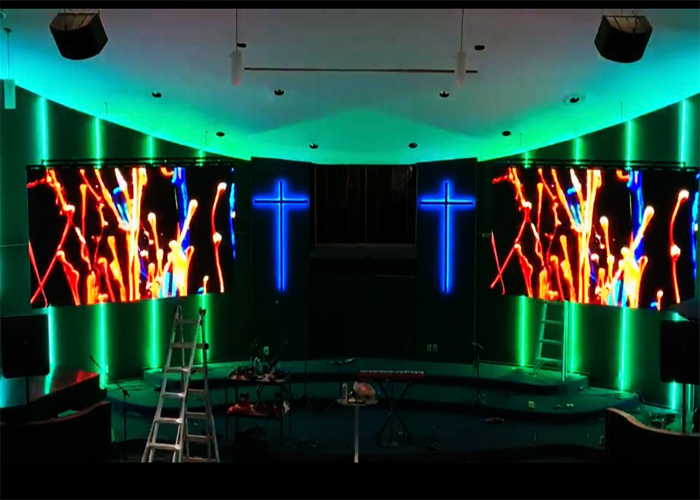

Customer feedback, P3.91 3x2m x2 pcs located in USA:

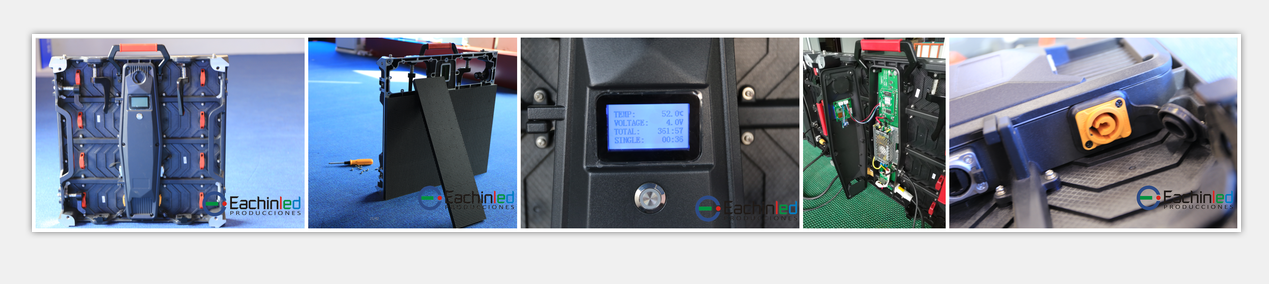

Newest design for P3.91 500x500mm cabinets:
